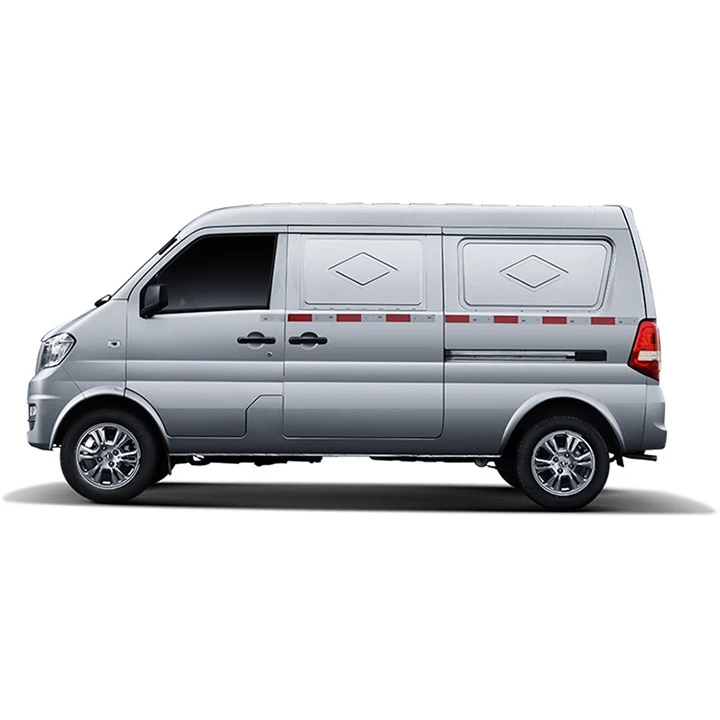

DFSK K05S Mini Truck: 4.14m³ Ultra-Large Cargo Space + 6.2L Super Fuel Efficiency

Super Spacious, Cargo Capacity is Competitiveness

With dimensions of 4070mm × 1560mm × 1910mm, the DFSK K05S offers a larger space than other vehicles in its class, boasting a maximum cargo volume of 4.14m³ for more efficient and fuel-saving transportation.

Key design highlights:

1.5m ultra-wide side sliding door enables seamless loading and unloading of forklifts, pallets, or large items without obstruction.

Flat cargo floor and removable partitions make it an excellent low-cost option for camper van conversions.

Hidden hooks and anti-slip floor mats ensure that even loose cargo remains securely transported.

High Power, Low Fuel Consumption

Equipped with a new multi-chain high-power transmission, the K05S delivers smoother gear shifts with improved efficiency. Powered by a 1.3L high-performance engine, it offers:
Maximum power of 68kW
Maximum torque of 125N·m
Comprehensive fuel consumption of just 6.2L per 100km, making it an economical and fuel-efficient choice.

Enhanced Load Capacity

Reinforced chassis with two longitudinal and seven transverse beams provides superior stability, preventing body deformation under heavy loads.

Upgraded suspension system enhances handling, preventing rollovers in sharp turns and maintaining stability on bumpy roads.

Widened and thickened chassis design, with local steel plate thickness increased by 30%, ensuring that even with 800kg full load, the frame remains intact over obstacles.

Real-time tire pressure monitoring helps detect tire anomalies in advance, reducing the risk of blowouts by 60%, ensuring safer heavy-load driving.

Product Specification

Product name	DFSK K05S Small Work Vans
Product name	High Power Edition 1.3L Basic Model
Basic parameters
Number of passengers	2, 5
Emission standards	National VI
Lengthwidthheight (mm)	407015601910
Wheelbase (mm)	2760
Wheelbase front/rear (mm)	1310/1310
Curb weight (kg)	1000
Total mass (kg)	1800
Displacement (ml)	1293
Maximum power (kW)	68
Maximum torque (Nm)	125
Fuel tank capacity (L)	50
Comprehensive fuel consumption (L/100km)	6.2
Drive mode	Mid-engine rear-wheel drive
Braking device	Front disc and rear drum, dual-circuit hydraulic brake
Front and rear suspension	Front suspension: McPherson independent suspension, rear suspension: 5-leaf spring non-independent suspension
Tire model	165 R14
Main Configuration
Body color	Elegant white/crystal silver
Interior style of the whole car	Brown interior
Steel wheels	●
Anti-lock braking system (ABS+EBD)	●
Tire pressure monitoring	●
air conditioner	○
Electric headlight height adjustment	●
E-tuning radio	●
2 speakers	●
Cup holder	●
Front fog lights	○
Front door electric windows	○
Electronic power	○
Remote control central locking	○
Remote control key	○
"●" - indicates that this configuration is available, "○" - indicates that this configuration is optional, and "-" - indicates that there is no such configuration
