Ruichi C9, redefining the standard of light
commercial vehicles
Ruichi C9 cabin boasts an extra-large 5.8m³ spacious body, with a flat floor allowing for standing or reclining rest; it features passenger car-level comfortable interior, dual large-screen smart cockpit, reduced A-pillar blind spots, stable heavy-load driving, and enhanced comfort and safety for long-haul freight.
Ruichi C9 Zhiling Chassis
Ruichi C9 is equipped with the Zhiling chassis - P series, with a frame height of 860mm, a high load-bearing Dena maintenance free rear axle, and high-strength steel plate springs, providing strong heavy-duty bearing capacity; Equipped with thunderous braking and active steering deviation suppression, it ensures full load driving without deviation and shorter braking distance; Centralized electronic and electrical architecture, supporting whole vehicle OTA upgrades, chassis intelligence that can be iterated, stable and durable, with low maintenance costs

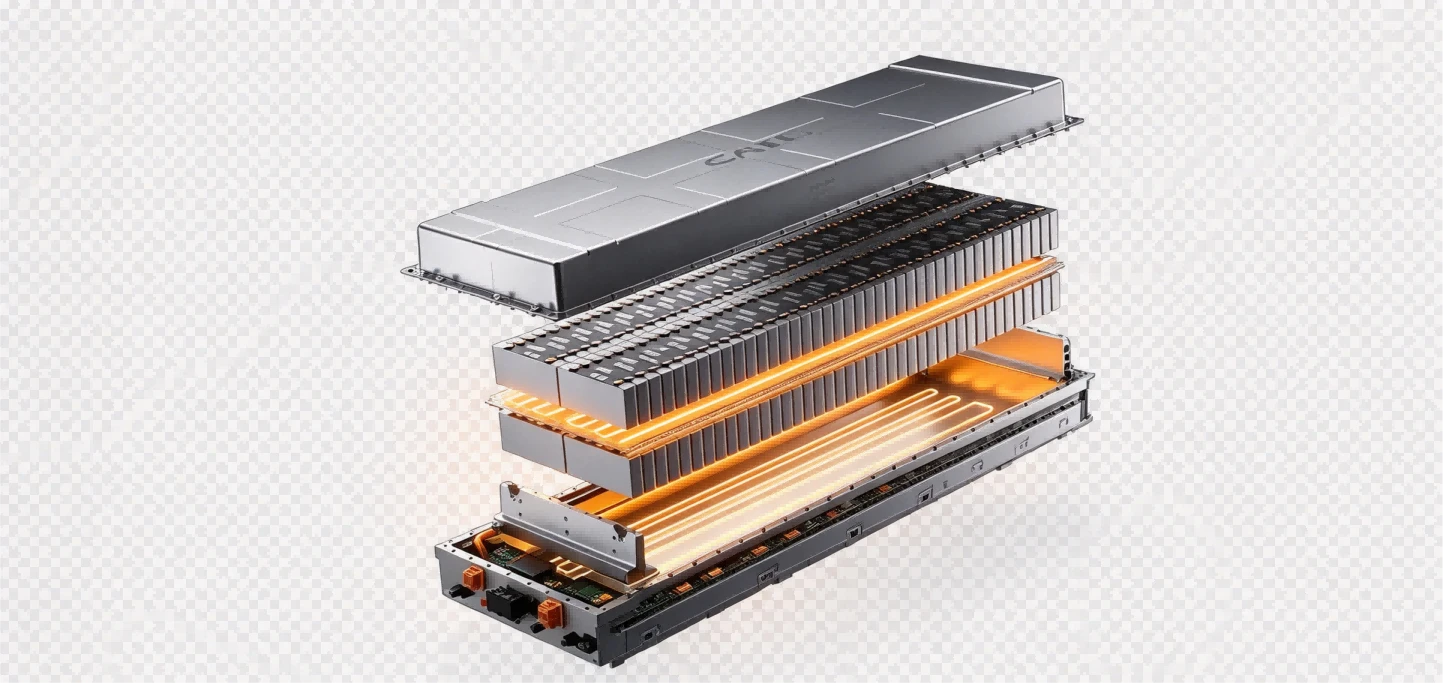

Ruichi C9 Battery
c is equipped with CATL Tianxing L lithium iron phosphate battery, which comes standard with liquid cooled full range temperature control and supports 2C fast charging. It only takes 18 minutes to charge 20% -80%; The 120kWh version has a range of 403km and is equipped with an integrated direct heat pump, making it more stable in extremely cold environments, safe and reliable, and suitable for high-frequency heavy-duty logistics operations.

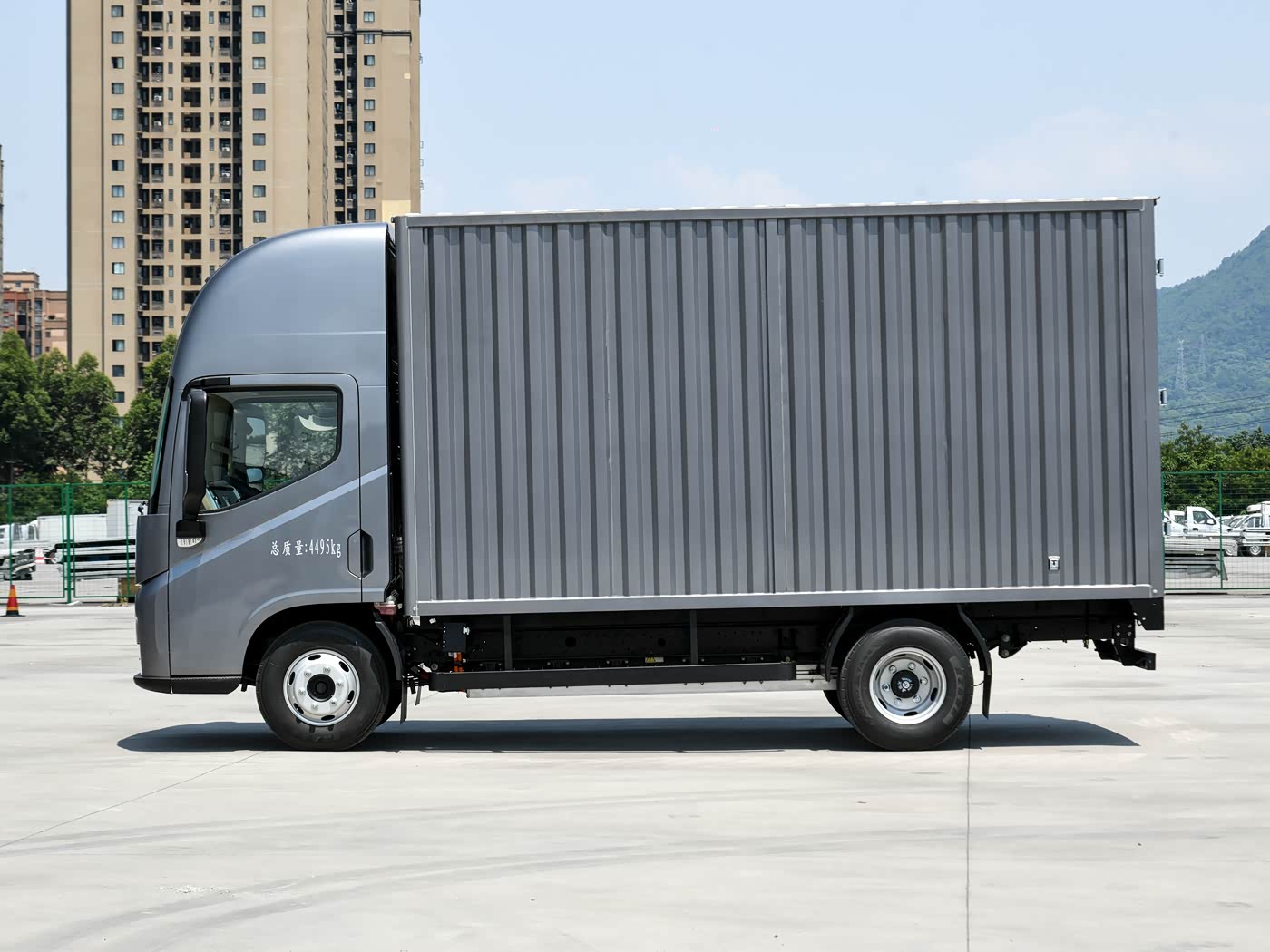

Ruichi C9 Capacity
Ruichi C9 adopts shield wide-body architecture. It features a 5.8m³ spacious cab with full flat floor and 2.2m internal height, allowing standing and lying for rest. The cargo box dimension is 4315×2100×2210mm with volume over 20m³. 4-side door design enables convenient loading & unloading, balancing driver comfort and large cargo capacity
Product Specification
| Cab | RUICHI C9 High-top integrated | |
| Powertrain Type | EV | |
| Basic | ||
| Body (mm) | Fence | 5995*2170*3180 |
| Box | ||
| Cargo (mm) | Fence | 4315*2100*2210 |
| Box | 4315*2100*2210 (with spliced panels) |
|
| Curb Weight (kg) | 3305 (dual-side doors), 3340 (quad-side doors), 3360 (Fence) | |
| Gross Vehicle Weight(kg) | 4495 | |
| Van Side Doors | Dual-side doors | |
| Wheelbase (mm) | 3360 | |
| Front/Rear Track (mm) | 1756/1660 | |
| Seating Capacity | 3 | |
| Maximum Speed (km/h) | 100 | |
| Final Drive Ratio | 16.193 | |
| Motor / Battery | ||
| Battery Type | Lithium Iron Phosphate | |
| Battery Capacity (kWh) | CATL 120 kWh (liquid-cooled) | |
| Driving Range under CHTC-LT Cycle (km) | Fence | 403 |
| Box | ||
| Charging Type | 2C On-board DC Charging | |
| Fast Charging Support | Yes | |
| 20%–80% Fast Charging Time | 18min | |
| Motor Type | Inovance Integrated Permanent Magnet Synchronous Motor (3-in-1) | |
| Peak Power (kW) | 140 | |
| Peak Torque (N·m) | 420 | |
| Motor Layout | Electric Drive Axle (maintenance-free at rear wheel hub) | |
| Chassis | ||
| Drive Type | RWD | |
| Front/Rear Suspension Type | Leaf Spring Rigid Axle (Non-independent Suspension) | |
| Brake Type | Front Disc Rear Drum Brakes | |
| Parking Brake Type | EPB(ESCI) | |
| Steering System | EPS | |
| Tire Specification | 7.00R16LT 10PR | |
| Number of Tires | 6 | |
| Wheel Rim | Steel Wheels (Silver) | |
| Exterior | ||
| Door Glass | Power Windows | |
| Blind-spot Mirror | ● | |
| Lighting | ||
| Front Combination Lamp | LED headlamps | |
| Side Turn Signal | ● | |
| Rear Fog Lamp | ● (dual rear fog) | |
| Reverse Light | ● (dual reverse lights) | |
| Front Position Lamp | ● | |
| Rear Position Lamp | ● | |
| Interior Light | 2个 | |
| Cargo Compartment Lamp | ●(1个,LED) | |
| Interior | ||
| Overhead Storage Shelf | ● | |
| Combination Instrument Cluster | Column-mounted Gear Shifter | |
| Air Conditioning | Automatic AC | |
| USB Type-C Port | Ports (Type-C 66W + Type-A 27W + Type-A Data) | |
| Gear Shift Mechanism | Column Shifter | |
| Sun Visor | Driver ● | |
| Multi-function Steering Wheel | ● | |
| Adjustable Steering Wheel | 4 | |
| Seats | ||
| Seat Configuration | 3-seater, bench passenger seat with fold-down armrest | |
| Seat Material | Fabric | |
| Driver's Seat Adjustment Type | 4-way manual adjustment | |
| Passenger Seat | Foldable center seatback | |
| Under-seat Storage Compartment | ● | |
| Multimedia | ||
| In-vehicle Audio & Video System | Radio + Bluetooth calling | |
| Speakers | 2 | |
| Microphone | 1 | |
| Safety | ||
| Charging Lock | ● | |
| High-Voltage Safety Monitoring | ● | |
| Central Locking with Remote Key | ● | |
| Auto Door Lock While Driving | ● | |
| Accelerator Misoperation Prevention System | ● | |
| Powertrain Anti-theft System | ● | |
| Collision-Activated Power Cut-off | ● | |
| Event Data Recorder (EDR) | ● | |
| Rearview Camera | ● | |
| Parking Radar | Rear ● | |
| Airbag(s) | Driver ● | |
| Intelligent Features | ||
| Start Method | Keyless Start | |
| Vehicle Scenario Modes | Trailer / Service / Showroom Mode | |
| Cruise Control | ● | |
| Low-Speed Pedestrian Warning | ● | |
| Emergency Braking Alert | ● | |
| Tire Pressure Monitoring System (TPMS) | ● | |
| Anti-lock Braking System (ABS + EBD) | ● | |
| Electronic Stability Control (ESC) | ● | |
| Traction Control System (TCS) | ● | |
| Hydraulic Brake Assist (HBA) | ● | |
| Hill Hold Control (HHC) | ● | |
| Auto Hold | ● | |
Detailed Picture
